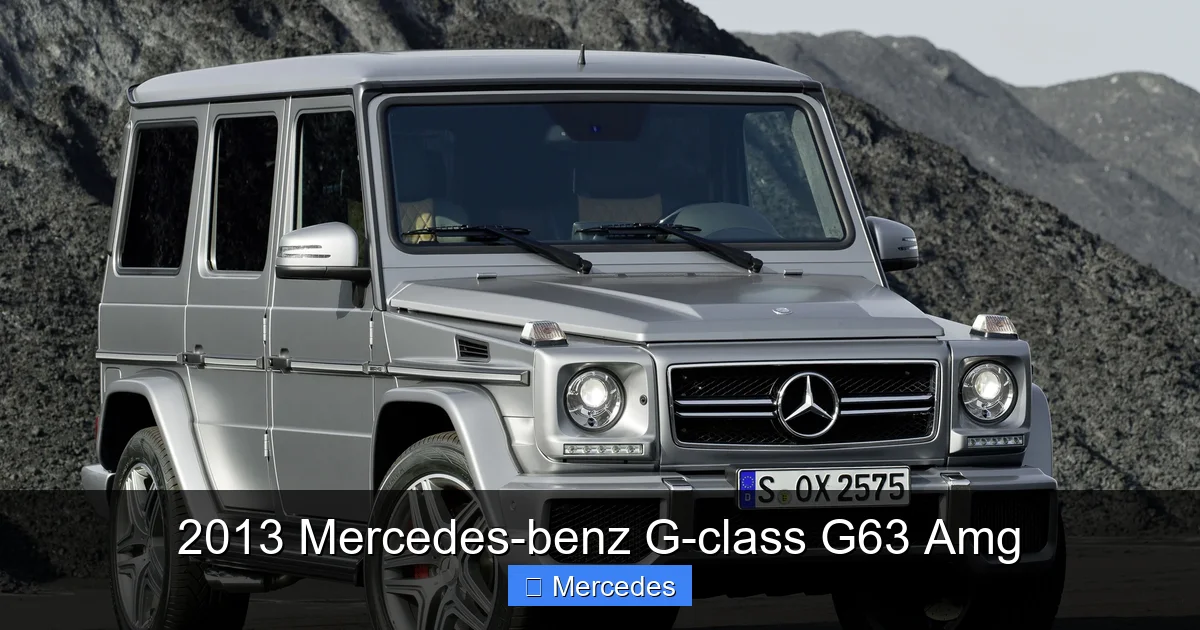

2013 Mercedes-Benz G-Class G63 AMG: Performance, Luxury & Ownership Guide

The 2013 Mercedes-Benz G-Class G63 AMG remains a singular proposition in 2026: a hand-built, ladder-frame SUV with a twin-turbo V8 that still embarrasses many modern sports cars off the line. Thirteen years after its debut, the G63’s blend of military-grade durability, AMG ferocity, and handcrafted cabin luxury keeps values strong and enthusiasts hunting for clean examples. This guide covers every angle — from the 5.5 L M157 engine’s real-world temperament to the specific maintenance intervals that separate a reliable daily from a money pit.

Quick Specs at a Glance

Data sourced from Mercedes-Benz original press kits and EPA certification documents.

Historical Context: Why the 2013 Refresh Mattered

The G-Class traces its roots to a 1970s military contract, but the 2013 model year brought the most significant update since the 1990 civilian launch. Mercedes revised the front fascia with LED daytime running lights, widened the track by 54 mm, and fitted the AMG-specific suspension that lowered the body 10 mm while retaining full articulation. Inside, the COMAND NTG II system gained a 7‑inch screen and Bluetooth audio streaming — features that felt cutting‑edge then and still function adequately today. For a broader look at how the SUV segment evolved around this icon, see our overview of the vehicle category’s origins.

Powertrain Deep Dive: M157 V8 Realities

The 5.5 L biturbo V8 (M157) is the heart of the G63 experience. Unlike the later M177 (4.0 L) found in post‑2018 models, the M157 uses two single‑scroll turbos integrated into the exhaust manifolds. This packaging yields instant torque — 561 lb‑ft arrives at just 1,750 rpm — but also concentrates heat in the valley between cylinder banks. In practice, that means:

• Oil temperature management is critical. The factory oil‑to‑water cooler is adequate for street use, but sustained high‑load running (track, desert, towing) can push oil past 260 °F. Many owners add an auxiliary cooler.
• Turbo actuator rattles appear around 60‑80k miles. The wastegate linkages wear, causing a metallic chatter on cold start. Revised actuators (part # A1570900162) solve it permanently.
• Fuel system demands 91‑octane minimum. The ECU will retard timing aggressively on lower grades, costing 30‑40 hp and increasing knock risk. For a full breakdown of Mercedes fuel requirements across the lineup, refer to our guide on premium fuel recommendations.

The 7G‑TRONIC transmission holds up well if fluid is changed every 40k miles using MB‑spec 236.15. Neglect this and the torque converter lock‑up clutch glazes, leading to shudder at light throttle.

AMG-specific front fascia with widened track, LED DRLs, and 19‑inch forged wheels — standard on the 2013 G63.

Drivetrain & Off‑Road Hardware

Full‑time 4MATIC with a two‑speed transfer case (low range 2.04:1) is standard. The center differential is a mechanical multi‑plate clutch that defaults to 40/60 front/rear split but can lock 100% via the dashboard button. Front and rear differentials are also selectable lockers — a rarity in this class. Combined with:

• Approach / departure / breakover angles: 36° / 27° / 24°
• Articulation: 14.2 in front, 12.6 in rear (measured at full droop)
• Factory skid plates: steel covers for engine, transfer case, and fuel tank

…the G63 tackles technical trails that would strand a Range Rover Sport. A common mistake is airing down to 15 psi on beadlock‑less wheels; the heavy SUV can unseat a bead. Stick to 22‑25 psi for mixed terrain.

On‑Road Dynamics: Heavy but Composed

At nearly 5,500 lb, physics wins eventually. The AMG sport suspension (stiffer springs, revised damper valving, thicker anti‑roll bars) reduces body roll to acceptable levels, but the high center of gravity remains. Steering is hydraulically assisted (rare for 2013) with a 16.5:1 ratio — precise on center, vague at lock. Brembo six‑piston front / four‑piston rear calipers bite hard; expect 115‑ft stops from 60 mph. Optional carbon‑ceramic rotors (code B07) fade less but cost $8,950 new and $3,200 per axle to replace.

Hand‑stitched Nappa leather, carbon‑fiber trim, and the AMG instrument cluster with white‑on‑black graphics.

Interior: Craftsmanship Over Tech

The 2013 cabin prioritizes materials over screens. Every surface the driver touches — wheel rim, door pulls, shifter, dash top — is leather or metal. The COMAND NTG II interface operates via a rotary controller; Apple CarPlay/Android Auto require a third‑party MMI box (≈$600 installed). Notable features:

• Seats: 14‑way power front with three‑stage heating/ventilation; optional multicontour with massage.
• Rear accommodation: 38.6 in legroom, but roofline cuts headroom for passengers over 6 ft.
• Cargo: 23.3 cu ft behind row two, 62.1 cu ft folded flat — usable shape, low load floor.
• Sound: Burmester 15‑speaker/600‑W system is excellent; subwoofer sits in the rear cargo side panel.

Build quality is exceptional — panel gaps are tight, switches click with authority. The only frequent squeak source is the panoramic sunroof cassette; a TSB (LI93.10‑P‑055547) addresses it with revised felt strips.

Technology & Safety: 2013 Standards

Standard safety kit includes Attention Assist (drowsiness detection), Crosswind Assist, Hill Start Assist, and BAS Plus (brake assist with pedestrian recognition). Optional packages added:

• Night View Assist Plus — infrared camera projects pedestrian highlights onto the instrument cluster.
• Distronic Plus — adaptive cruise with stop‑and‑go (works down to 0 mph).
• Blind Spot Assist & Lane Keeping Assist — radar/ultrasonic based.

NHTSA awarded a 4‑star overall rating (frontal 4, side 5, rollover 3). IIHS did not test the G‑Class. For current crash‑test methodologies, see the agency’s rating page.

Ownership Costs & Maintenance Schedule

Budget $2,200‑$3,500 annually for a 60k‑mile example driven 8k miles/year. Key intervals:

Common failure points (verified across enthusiast forums and dealer bulletins):

1. Transfer case chain stretch — whine at 40‑60 mph, fixable with updated chain ($1,100 parts).
2. Rear diff seal leaks — weep at axle tubes, $350 per side.
3. A/C evaporator — dash‑out job, $2,200‑$2,800; extended warranty (W463‑87‑001) covers to 10 yr/100k mi.
4. COMAND screen delamination — bubbles at edges, replacement $1,400.

Always use a shop with STAR diagnostics (Xentry) — generic scanners miss AMG‑specific codes. For help evaluating whether a Mercedes specialist is necessary, see our piece on finding the right service approach.

2026 Buying Guide: What to Inspect

Clean 2013 G63s now trade $85k‑$130k (vs. $135k MSRP). Mileage under 50k commands a premium; 70k‑90k is the sweet spot for value. Checklist:

• Cold start: Listen for wastegate rattle (metallic tick 3‑5 sec).
• Oil analysis: Request a Blackstone report — look for silicon (dirt ingestion) and fuel dilution >3%.
• Underbody: Inspect skid plates for impact damage; check diff breathers for clogging.
• Electronics: Cycle every button, test all windows/locks, verify Night Vision (if equipped) activates.
• Rust: Rare, but examine rear wheel arches, door bottoms, and spare‑tire carrier welds.
• Service records: Demand proof of 40k‑mile fluid changes; missing trans fluid change is a negotiation lever ($2‑3k off).

A pre‑purchase inspection by an AMG‑certified tech costs $400‑$600 and pays for itself.

Modification Path (Without Regret)

The M157 responds well to tuning. A Stage 1 ECU flash (≈$1,200) yields 600‑620 hp / 650‑680 lb‑ft on 93‑octane with no hardware changes. Further gains require:

• Downpipes (catted) — +25 hp, louder, may trigger CEL in CARB states.
• Intercooler upgrade — essential for hot climates; reduces heat soak by 30°F.
• Suspension: KW V3 coilovers ($3,800) improve on‑road control without sacrificing travel.
• Tires: 275/55R19 all‑terrains (KO2, AT3W) fit stock wheels; 285/50R20 requires 21‑inch rims.

Avoid “pop‑tune” exhaust deletes — they drone horribly at 70 mph and invite tickets.

Frequently Asked Questions

Is the 2013 G63 AMG reliable long‑term?

With disciplined maintenance, yes. The M157 block and 7G‑TRONIC are over‑engineered. Most major repairs stem from deferred fluid changes or ignored leaks.

What’s the real‑world fuel economy?

Expect 11‑13 mpg mixed. Highway at 75 mph returns 14‑15 mpg; city traffic drops to 9‑10 mpg. Premium fuel is non‑negotiable — see our analysis of Mercedes fuel alternatives.

Can it fit in a standard garage?

Length: 187.9 in (4,773 mm). Width with mirrors: 85.4 in. Height: 77.4 in. Most 7‑ft garage doors clear with 2‑in margin — fold mirrors.

Does it have Apple CarPlay / Android Auto?

Not factory. Retrofit modules (CarPlay2Air, MMB) work well but disable the rotary controller touchpad.

What’s the tax / insurance reality?

Insurance averages $2,400‑$3,200/yr for full coverage (varies by state). Property tax (where applicable) hits hard on $100k+ valuation.

Final Verdict

The 2013 Mercedes‑Benz G‑Class G63 AMG is a rare machine that delivers genuine off‑road credibility, supercar‑rivaling acceleration, and a cabin that still feels special in 2026. It demands respect — both in driving dynamics and maintenance discipline — but rewards owners with an ownership experience no modern crossover can replicate. If you find a documented, rust‑free example with complete fluid history, it’s a buy-and-hold asset that continues to appreciate. Ready to start your search? Browse current listings and connect with AMG specialists through our enthusiast resources hub.
