The Mercedes Truck G63 AMG 6×6 sits at the intersection of military-grade engineering and uncompromising luxury. With six driven wheels, portal axles, and a hand-built twin-turbo V8, it delivers capability that few vehicles can match — whether climbing dunes in Morocco or navigating city streets in Monaco. Produced in extremely limited numbers at the Magna Steyr facility in Graz, Austria, each example is tailored to its owner’s specifications. This guide covers every critical aspect: heritage, specifications, design, performance, interior technology, real-world off-road behavior, ownership costs, and what the future holds for the G-Class lineup.
Heritage and Evolution of the G-Class
Military Roots to Modern Icon
The G-Class originated in the early 1970s as a joint venture between Mercedes-Benz and Steyr-Daimler-Puch for NATO forces. Its ladder frame, solid axles, and boxy body were designed for durability, not aerodynamics. Civilian sales began in 1979, but the model remained a niche utilitarian tool until the 1990s when Mercedes added luxury appointments, permanent all-wheel drive, and electronic traction aids. By 2013 the AMG division introduced the G63, pairing the G-Wagen’s rugged chassis with a 5.5-liter biturbo V8 — a formula that proved wildly popular among enthusiasts and celebrities alike.
Development of the 6×6 Variant
The 6×6 concept debuted at the 2011 Frankfurt Motor Show as a technology demonstrator. Engineers lengthened the frame, added a second rear axle, and developed portal hubs that lift the driveline above the wheel centerline. This architecture preserves the G-Class’s approach and departure angles while providing 16 inches of ground clearance. Production started in 2013 and was capped at roughly 100 units per year, making the 6×6 one of the rarest regular-production vehicles Mercedes has ever offered.

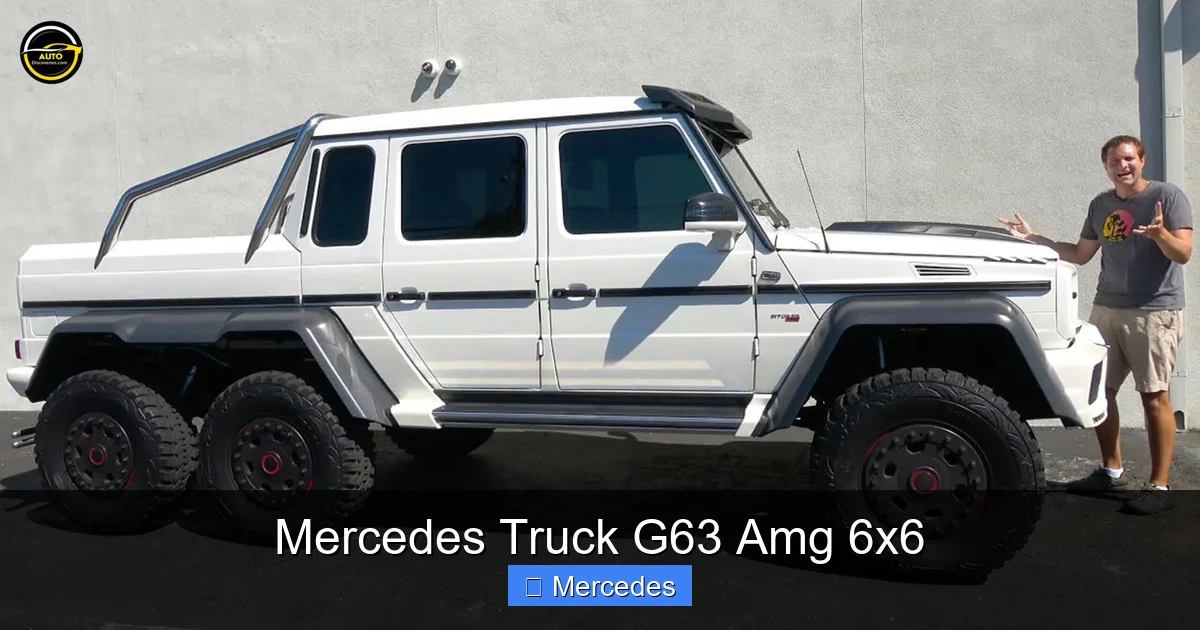

Mercedes G63 AMG 6×6 showing its portal axles and aggressive stance
Image source: cimg0.ibsrv.net
Technical Specifications at a Glance
| Specification | Detail |
|---|---|
| Engine | 4.0 L twin-turbo V8 (M177) |
| Output | 577 hp @ 6,000 rpm / 627 lb-ft @ 2,500–5,000 rpm |
| Transmission | 9-speed AMG SPEEDSHIFT TCT 9G |
| Drivetrain | Permanent 4MATIC+ with three locking differentials |
| Axle Configuration | 6×6 with portal gears (front, mid, rear) |
| Ground Clearance | 460 mm (18.1 in) unladen |
| Wading Depth | 800 mm (31.5 in) |
| Curb Weight | ~3,850 kg (8,488 lb) |
| Top Speed | 160 km/h (100 mph) electronically limited |
| Fuel Requirement | 98 RON / 93 AKI premium gasoline |
| EPA Combined | 12 mpg (19.6 L/100 km) |
Data sourced from Mercedes-Benz G-Class official specifications and EPA fuel economy ratings.
Exterior Design and Engineering
Portal Axles and Ground Clearance
Portal axles are the 6×6’s defining mechanical feature. Each wheel hub contains a gear set that drops the wheel center below the axle tube, raising the entire driveline. This yields 460 mm of ground clearance without excessively tall tires, keeping the center of gravity lower than a conventional lift kit would. In practice, the portals also reduce driveline stress because torque is multiplied at the wheel, allowing smaller, lighter axle shafts.
Central Tire Inflation System
The factory-fitted Central Tire Inflation System (CTIS) lets the driver select preset pressures — highway, gravel, sand/mud, and emergency — from the center console. Lowering pressure to 1.0 bar (15 psi) on soft sand expands the contact patch dramatically, while reinflation to 3.5 bar (51 psi) for pavement takes roughly two minutes per axle. A common mistake is forgetting to reinflate before high-speed runs, which can overheat the sidewalls.
Customization Options
Mercedes-AMG’s Manufaktur program offers over 40 exterior paint finishes, including matte and designo metallics. Popular add-ons include a roof-mounted LED light bar, a 12,000 lb winch integrated into the front bumper, and carbon-fiber fender flares that widen the track by 40 mm. Interior appointments range from diamond-stitched Nappa leather to open-pore wood trims and an available rear-seat entertainment system with dual 10.1-inch screens.
Powertrain and Performance
Twin-Turbo V8 Output
The M177 4.0-liter V8 uses twin-scroll turbochargers positioned inside the valley for rapid spool. Peak torque arrives at just 2,500 rpm and holds flat to 5,000 rpm, giving the 6×6 effortless low-end grunt for crawling and strong mid-range pull for highway overtaking. In practice, the engine’s sound is amplified by a switchable AMG Performance exhaust that opens bypass valves in Sport+ mode.
Transmission and Drivetrain
The 9-speed AMG SPEEDSHIFT TCT 9G features a wet multi-plate launch clutch instead of a torque converter, sharpening shifts and reducing parasitic loss. Power flows through a two-speed transfer case with a 2.85:1 low range, then to three independently lockable differentials (front, center, rear). Engaging all three locks creates a true 6×6 mechanical link — invaluable when one or more wheels lose contact entirely.
On-Road Manners
Despite a 3.85-tonne mass, the 6×6 reaches 100 km/h in approximately 5.8 seconds. Adaptive damping (AMG RIDE CONTROL) reads road inputs at 1,000 Hz, stiffening for cornering and softening for washboard trails. Electric power steering is geared quicker than the standard G63, yet remains light enough for parking-lot maneuvers. Wind noise is noticeable above 120 km/h due to the upright windshield and roof rack — a trade-off inherent to the silhouette.
Interior Luxury and Technology
MBUX Infotainment and Connectivity
Dual 12.3-inch widescreen displays run the latest MBUX generation with natural voice recognition (“Hey Mercedes”). The system supports wireless Apple CarPlay and Android Auto, over-the-air map updates, and an off-road overlay showing pitch, roll, altitude, and differential status. Augmented-reality navigation projects turn arrows onto the forward camera feed — useful in dense urban canyons where GPS can drift.
Comfort Features and Cargo Practicality
Front seats offer 14-way adjustment with massage, heating, and ventilation. The second row slides and reclines; the third row (standard on 6×6) folds flat to create a 1,940 L load floor. Tie-down rails, a 12 V/230 V inverter, and a lockable under-floor compartment accommodate camera gear or recovery equipment. Sound insulation includes laminated side glass and active engine mounts, keeping cabin noise at 62 dB(A) at 100 km/h.
Real-World Off-Road Capability
Desert and Sand Performance
In the Sahara’s Erg Chebbi, the 6×6’s CTIS set to 1.0 bar and rear diff locked allows steady progress up 30-degree dunes without wheelspin. The long wheelbase (3,850 mm front-to-mid, 1,525 mm mid-to-rear) bridges troughs that would high-center shorter vehicles. Momentum management is key — the low-range gearing lets you crawl at 2–3 km/h while maintaining turbo boost.
Rock Crawling and Technical Trails
Moab’s Hell’s Revenge showcases the portal axles’ articulation: each wheel travels ±350 mm independently. With front, center, and rear diffs locked, the 6×6 can place a single tire on a ledge while the other five maintain traction. The crawl control system (activated via the OFF-ROAD menu) holds a set speed between 1–18 km/h, modulating brakes and throttle automatically — freeing the driver to focus on line selection.
Water Fording and Cold-Weather Operation
The 800 mm wading depth is achieved through raised breathers, sealed ECU housings, and a waterproofed transmission bell housing. In Patagonian river crossings, maintain a steady 5 km/h to create a bow wave; stopping mid-stream risks water ingestion through the door seals. For Arctic conditions, specify the Arctic Package: auxiliary diesel heater, winter tires on beadlock wheels, and low-viscosity synthetic fluids rated to -40 °C.
Low-pressure tires and portal axles enable deep-sand mobility
Image source: autodiscoveries.com
Ownership Costs and Maintenance
Scheduled Service Intervals
Mercedes prescribes Service A (oil, filter, inspections) every 15,000 km or 12 months and Service B (adds brake fluid, spark plugs, differential oils) every 30,000 km. The 6×6’s three differentials each hold 1.5 L of specific hypoid gear oil; the transfer case takes 2.0 L. Only technicians with AMG 6×6 certification should perform these services — typically available at flagship dealerships or specialist independents.
Insurance, Depreciation, and Fuel Economy
Annual premiums for agreed-value policies range from $8,000–$15,000 depending on storage location and mileage cap. Depreciation is steep in year one (~30%), but well-maintained, low-mileage examples have begun appreciating as production ended in 2020. Fuel costs are substantial: at 12 mpg combined and $4.50/gal premium, expect $3,750 per 10,000 miles. Understanding premium fuel requirements helps avoid knock-related damage. Owners should also know which models need premium to prevent misfuelling fleet vehicles.
Warranty and Extended Coverage
The factory New Vehicle Limited Warranty covers 4 years / 50,000 miles. Mercedes offers Extended Limited Warranty up to 7 years / 100,000 miles, but coverage for portal-gear assemblies and CTIS components varies by region. Roadside assistance includes flatbed transport to the nearest certified dealer — critical because a disabled 6×6 cannot be towed conventionally without removing driveshafts. Weighing the pros and cons of regular fuel is irrelevant here; the M177 mandates 93 AKI minimum.
The Future: Electrification and the G-Class Lineup
As of 2026, Mercedes sells the all-electric G 580 with EQ Technology (marketed as EQG) alongside the V8-powered G63 and G550. The EQG uses four independently controlled wheel motors, a 116 kWh battery, and simulated low-range gearing via torque vectoring — delivering 0–100 km/h in 4.7 seconds and up to 473 km WLTP range. While the 6×6 remains a combustion-exclusive halo model, its portal-axle architecture informed the EQG’s wheel-motor packaging. Mercedes has committed to carbon-neutral production at Graz by 2039, incorporating recycled aluminum and green steel in new G-Class frames. For perspective on the segment’s trajectory, the SUV heritage shows a clear shift toward electrified off-roaders.
Buying Considerations and Market Availability
Only ~700 units were built globally (2013–2020), so most transactions occur through specialist brokers or auction houses. Verify the following before purchase:
- Complete service records with AMG 6×6 stamps
- CTIS compressor and air-line integrity test
- Portal gear oil analysis for metal particles
- Original window sticker (confirms Manufaktur options)
- Remaining warranty transferability
Current asking prices range from $450,000 for high-mileage examples to $750,000+ for single-owner, sub-5,000-mile specimens with desirable color combinations. Financing is limited to private lenders; traditional banks often classify the 6×6 as exotic collateral. If you’re new to the segment, reviewing SUV basics can clarify terminology used in listings.
Frequently Asked Questions
What makes the G63 AMG 6×6 different from the standard G63?
Two additional driven axles, portal hubs, 460 mm ground clearance, 800 mm wading depth, CTIS, and a 1.3 m longer wheelbase create fundamentally different off-road geometry.
Can the G63 AMG 6×6 cross rivers?
Yes, up to 800 mm (31.5 in) with proper preparation: engage low range, lock all diffs, set CTIS to off-road pressure, and maintain steady momentum to sustain a bow wave.
Is there a warranty on the G63 AMG 6×6?
Factory warranty was 4 years / 50,000 miles. Extended plans were available at purchase; remaining coverage transfers to subsequent owners if service history is unbroken.
How fast can the G63 AMG 6×6 go?
Electronically limited to 160 km/h (100 mph). The limit exists because the 37-inch tires are speed-rated to 170 km/h and the high center of gravity makes emergency maneuvers above that threshold unstable.
Are parts expensive to replace?
Yes. Portal gear sets, CTIS components, and model-specific body panels are low-volume parts with lead times of 8–12 weeks. Budget $15,000–$25,000 annually for consumables and unexpected repairs.
Can I customize my G63 AMG 6×6 after purchase?
Mercedes-AMG Manufaktur can retrofit most interior trims and select exterior items. Structural modifications (winch mounts, roof racks) should use factory-approved brackets to preserve chassis integrity.
Conclusion
The Mercedes Truck G63 AMG 6×6 remains a singular achievement: a vehicle that conquers the world’s harshest terrain while coddling occupants in handcrafted luxury. Its portal-axle engineering, three locking differentials, and onboard tire-inflation system deliver capability that borders on the absurd — yet the cabin technology and ride quality are thoroughly modern. Ownership demands deep pockets, specialist maintenance, and acceptance of 12 mpg fuel economy, but the reward is access to places no other production vehicle can reach. As the G-Class family embraces electrification, the 6×6 stands as the final, uncompromising expression of the V8-powered G-Wagen legacy. If the opportunity arises to experience one — whether as a driver or a passenger — seize it. The memory of six wheels climbing a vertical sandstone face in silence, save for the V8’s growl, defines automotive exclusivity.
